JCW-CST02 LARGE AUTOMATIC WIRE STRIPPING AND CRIMPING MACHINE - LARGE WIRE VERSION( UP TO 6 mm)

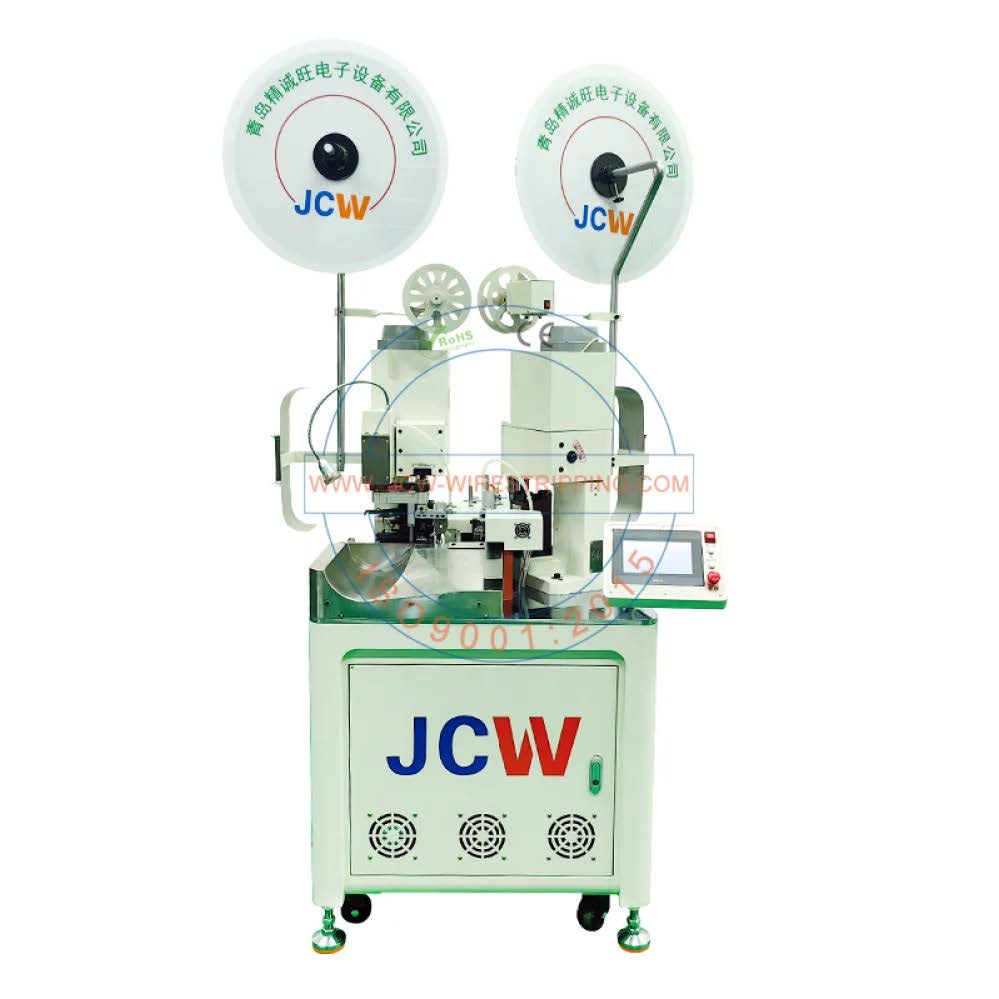

JCW-CST02 Fully Automatic Dual-ends Terminal Crimping Machine

Economical price with precise wire processing

The JCW-CST02 is an automatic wire stripping and crimping machine. The standard SMALL WIRE version is designed for cutting, stripping, and crimping hook up wires in the cross-section range from 0.1 mm² to 2 mm²,crimping force is 2 tons ( 20 KN ).

The BIG WIRE version can process wire up to 6 mm². The compact machinedesign provides economic flexibility and high productivity over 4000 pieces per hour.

To ensure product quality, JCW integrates high-quality components. Efficient stepper motors, highly rigidtransmission structure, high-speed control system. User-friendly interface and 7" touch screen interface offersyou accurate input and clear vision. The JCW-CST02 wire crimping machine offers vivid detection functions,wire lack detection, wire knot detection, stripping detection, crimping detection, air pressure detection, etc. Highspeed and high volume output offer 4000 pcs per hour by 100mm of wire length.

Various peripherals and options

- Crimping force monitoring ( CFM )

- 4 mm² wire processing

- 4 tons crimping machine

- Wire prefeeder for keeping proper wire tension

- Conveyor belt for stacking finished wire

- Customize HMI, language & logo

Customizable for Europe mini-style crimp applicator, Japanese / Korean crimp applicator, etc.

Can be updated for processing insulated terminal on reel or loose

An all-around safety cover is addable

Conveyor is addeble

Big wire & small wire versions for selection
